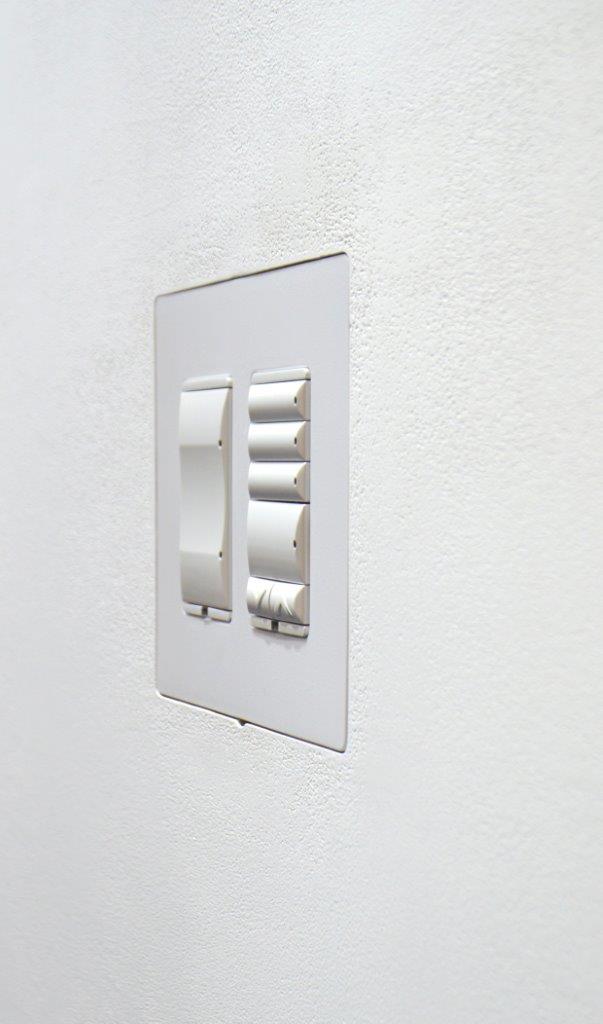

Wall‑Smart Flush Back Box for Lutron Designer Style — 2‑Gang (5/8" Drywall)

Wall-Smart for Lutron Designer Style 2-Gang (5/8") creates a true flush, paint-to-match installation so Designer-style Decora accessories sit perfectly level with the wall. The adapter recesses cleanly into 5/8-inch drywall, preserving quiet, architectural lines with no proud edges while still allowing simple access and service. Depth-calibration screws ensure the finished plate reads precise and intentional across refined residential and hospitality interiors.

Purpose-built for 5/8-inch drywall, the frame installs with standard tape, mud, and paint steps and finishes in the same color and texture as the surface for a composed, integrated look. Use the included installation spacers to fine-tune the set so the face registers perfectly flush after sanding and paint. Plan a standard two-gang electrical box (e.g., Hubbell-Raco 420 or equivalent) and follow the drawing’s spacing guidance between drywall supports for a precise fit. To open the faceplate for service, insert a thin plastic card at the edge and gently push. For 1/2-inch board installations, use the companion model noted in the spec. Interior wall use only. Electronics/devices, Lutron faceplate, and back box are not included—this listing is for the flush-mount adapter and mounting hardware only.

• Designed for 5/8" drywall; for 1/2" drywall use model 10-01-102.

• Compatibility: Lutron Designer style 2-gang faceplate with line-voltage Decora-style accessories.

• Dimensions and weight: about 7.50" W × 7.40" H × 1.52" D; ~0.88 lb.

• Installation features: depth-calibration screws; use included M4-nut spacers to set flush; faceplate opens with a thin plastic card.

• Materials and power: moisture-resistant MDF; no power required (manual adapter).

• Kit contents: wall adapter, eight KA3.5×8 screws, four installation spacers (M4 nuts).
