Wac FQ Series Square 2" Trimmed Wall Wash Downlight With Housing

The WAC FQ 2″ Wall Wash (Trimmed Square) delivers an even, architectural wash from a discreet 2-inch aperture. The die-cast square trim sits clean to the ceiling with a composed edge, expanding the sense of space and flattering vertical surfaces across galleries, living rooms, corridors, and feature walls. This listing is sold as a complete set—trim/light engine paired with the matching FQ 2″ new-construction housing—so you select output, color temperature (including Warm Dim), and finish in one coordinated, ready-to-install package.

Specify this trimmed square wall-wash when you want smooth floor-to-ceiling illumination with a quiet ceiling detail. The light engine mounts to the trim with springs for easy service; two-piece die-cast construction maintains precise alignment and glare control. Choose 2700 K, 3000 K, or 3500 K at 90 CRI for consistent rendering, or Warm Dim (3000–1800 K) for candle-like ambience as you dim; delivered output is up to approximately 1,465 lumens depending on wattage and CCT. The included FQ 2″ new-construction housing is universal-voltage (120–277 VAC) with ELV, 0–10 V, or TRIAC dimming to 1%, offered in 15 W, 21 W, or 25 W outputs and in IC or Non-IC Airtight configurations, including emergency options. Use indoors in drywall ceilings; keep a composed visual language by pairing with FQ downlight and adjustable trims in the same finishes. Professional installation is recommended to ensure correct housing selection (IC/air-seal and EM as required), clean cutouts, and uniform wall illumination.

• Aperture and type: 2″ wall-wash, trimmed square; part of the FQ 2″ family

• Light quality: 90 CRI; CCT 2700 K, 3000 K, 3500 K; Warm Dim 3000–1800 K option

• Output: up to ~1,465 lm delivered (by wattage/CCT)

• Power & dimming (housing): 15 W / 21 W / 25 W; 120–277 VAC; ELV, 0–10 V, or TRIAC to 1%

• Construction: two-piece die-cast aluminum trim with aluminum heat sink; light engine spring-mounted for serviceability; rated life 50,000 hours

• Operating temperature: −4 °F to 104 °F

• Finishes: BK Black, DB Dark Bronze, HZWT Haze/White, WT White

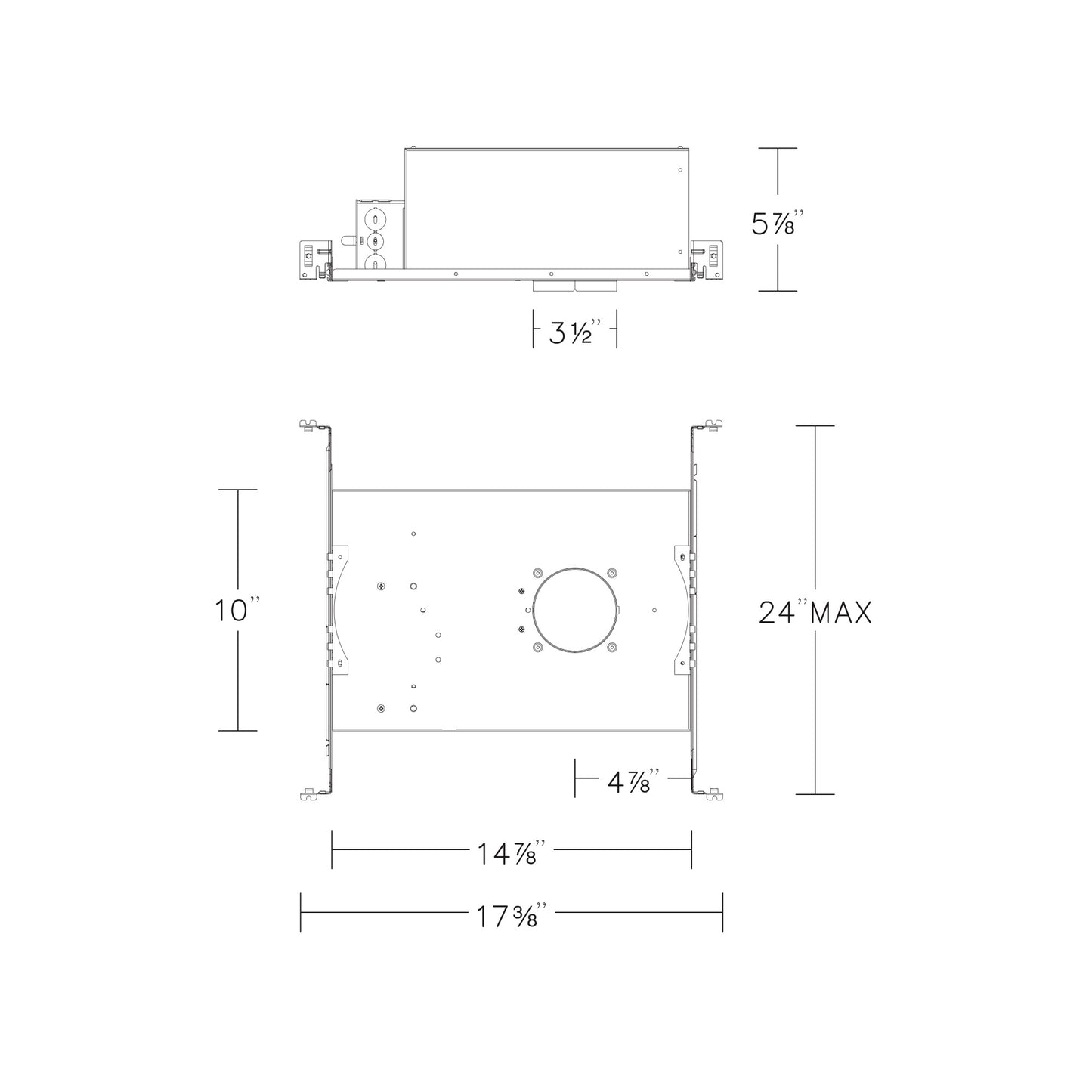

• Housing included: FQ 2″ new-construction housing (IC or Non-IC Airtight; EM variants available)

• Location: interior drywall ceilings only; airtight when used with rated housing
