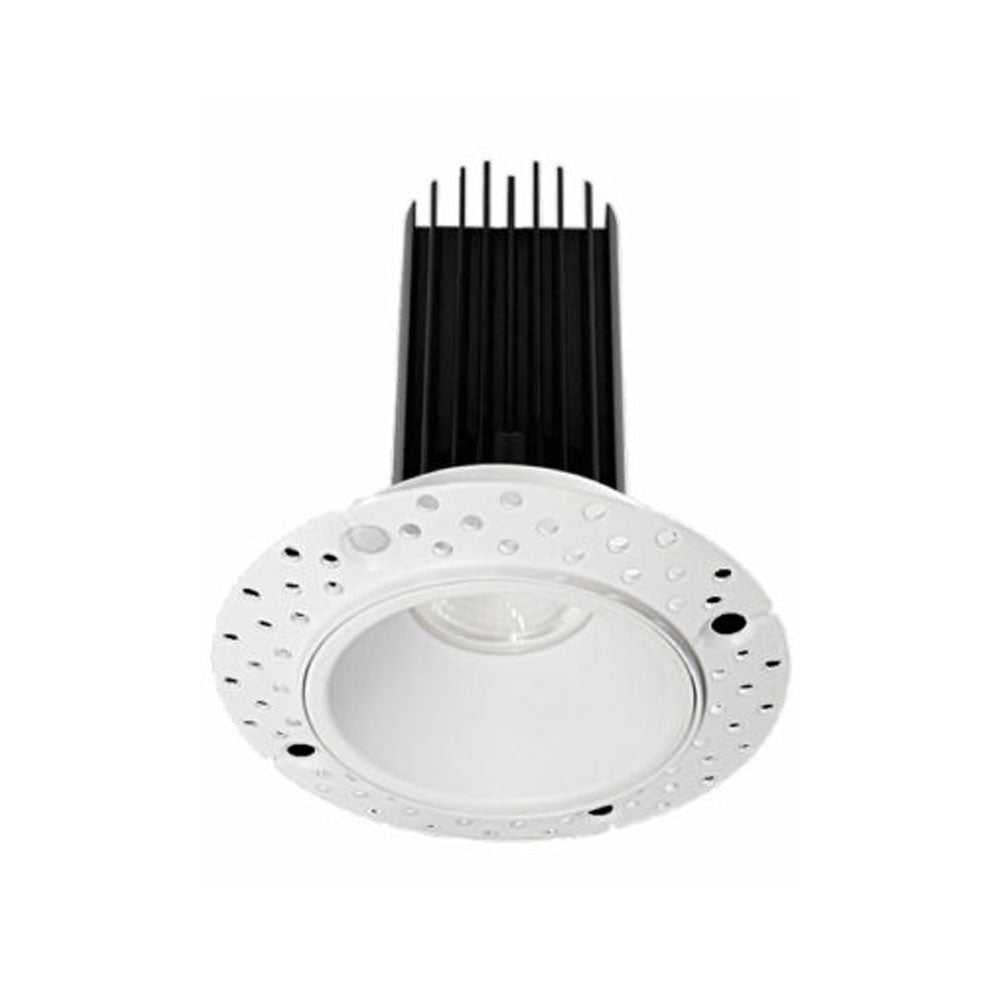

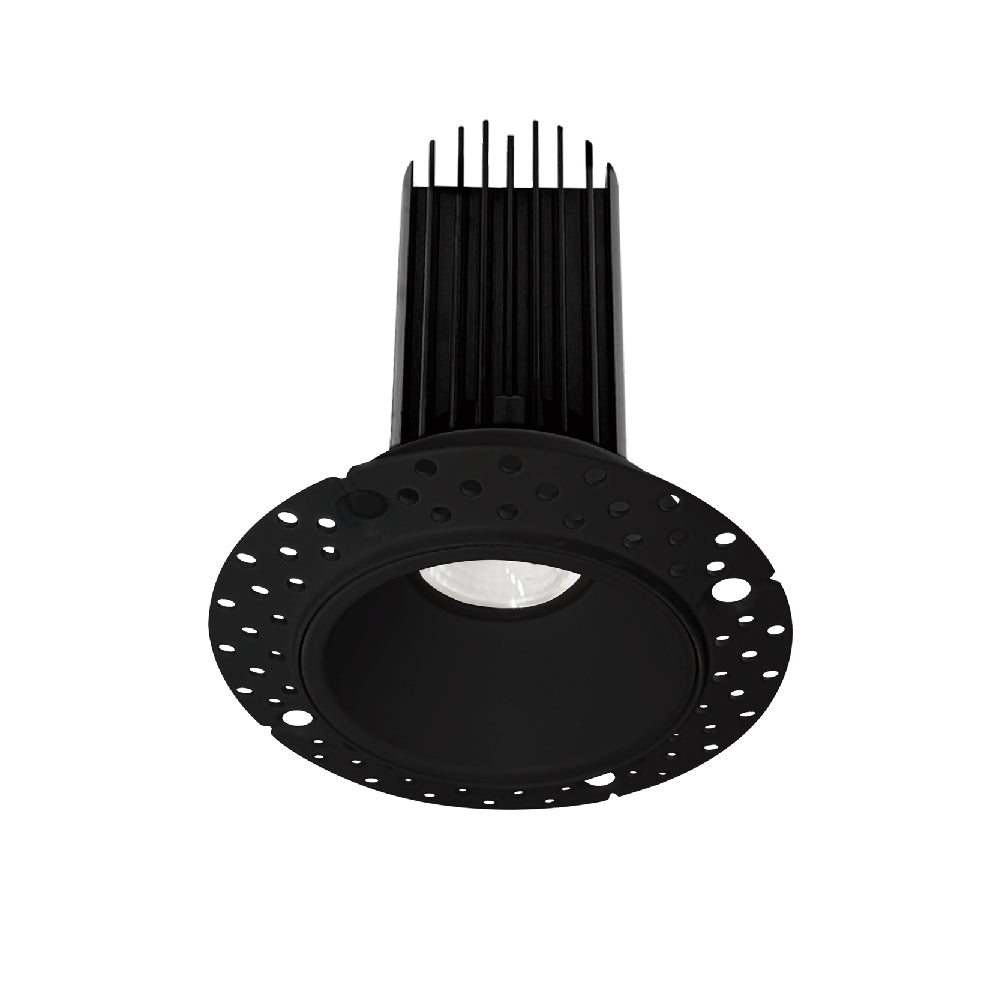

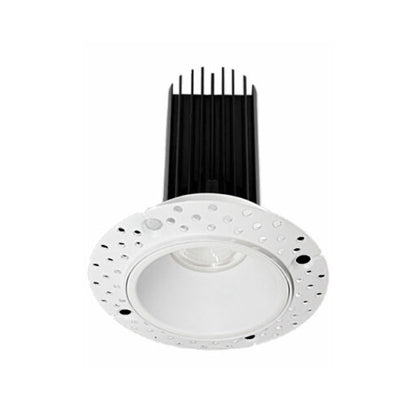

Lotus 2" Round Trimless Down Light — 15W

The Lotus 2" Round Trimless Recessed 15W downlight creates a quiet, flangeless ceiling detail that reads clean and intentional—no bulky housings, no visual clutter. A compact, regressed optic delivers comfortable light from a minimal 2½" aperture, while the trimless edge finishes crisp to drywall or millwork for a seamless, architectural plane. Select 5CCT on site (2700–5000K) or choose Dim-to-Warm for an incandescent-like 3000K→1800K curve. With 90+ CRI, IC/air-tight construction, wet-location listing, and a 5" overall depth, this high-output 2" fixture brings refined, design-first illumination to residential and hospitality ceilings—especially where shallow plenums and small apertures are required.

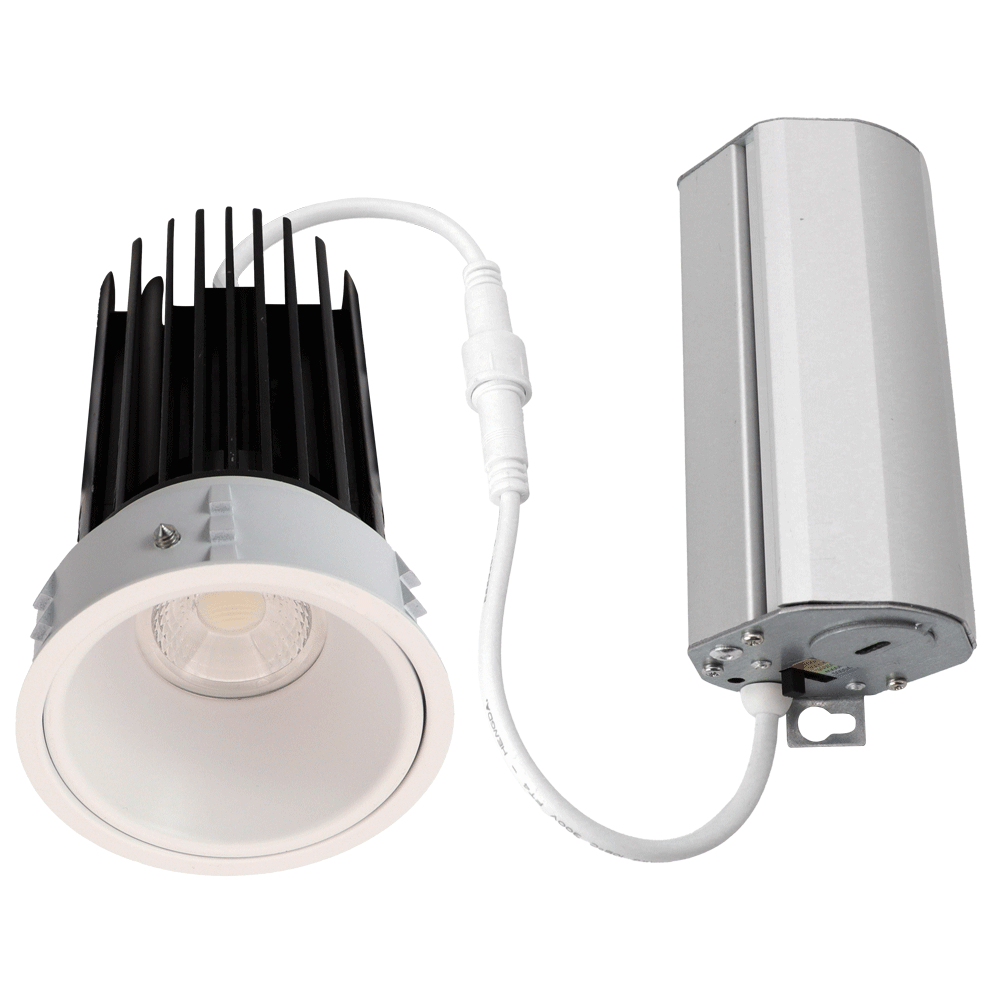

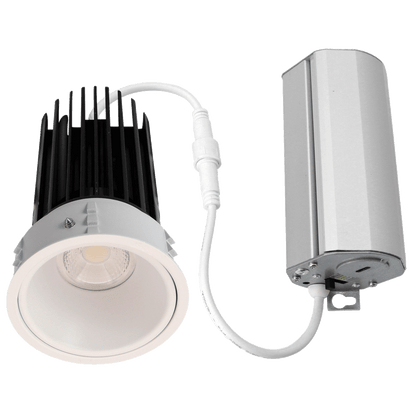

This designer-grade module integrates its driver inside the connection box, so no separate housing or junction box is needed. Cut a 2⅝" opening, provide 5" of ceiling clearance for the connection box, and mud the trimless ring for drywall or use the dedicated millwork solution where needed. Standard beam is 38° for comfortable general illumination; 24° and 60° optics are available for tighter accents or broader wash. Output varies by CCT selection, with up to 985 lumens in 5CCT and approximately 800 lumens in Dim-to-Warm. Default driver is 120 V triac dimmable; an optional 120–347 V, 0–10 V dimmable driver supports commercial control strategies. The fixture is Type IC, air-tight, and wet-location rated for use over showers and other damp/wet zones. Trim finishes include white and black in stock; square trimless versions are available under a companion SKU. Plan conductor gauge for run length, follow ambient limits (-4°F to 104°F), and maintain ceiling clearances for code-compliant installation.

• Aperture and size: 2½" ID, 3½" OD; 2⅝" cutout; 5" fixture depth; 5" ceiling clearance for connection box

• Light and color: 5CCT selectable 2700/3000/3500/4000/5000K or Dim-to-Warm 3000K→1800K; CRI 90+

• Output: 820–985 lm (5CCT, by setting); ~800 lm (Dim-to-Warm)

• Optics: 38° standard; 24° and 60° available

• Electrical and control: 15 W; 120 V triac dimming standard; optional 120–347 V with 0–10 V dimming

• Ratings and listings: Type IC; air-tight; wet-location; cETLus; 5-year warranty

• Installation: trimless mud-in for drywall or millwork option; no separate housing/J-box required (driver in connection box)
