Faradite MOTION SENSOR 360 IP67 BLACK

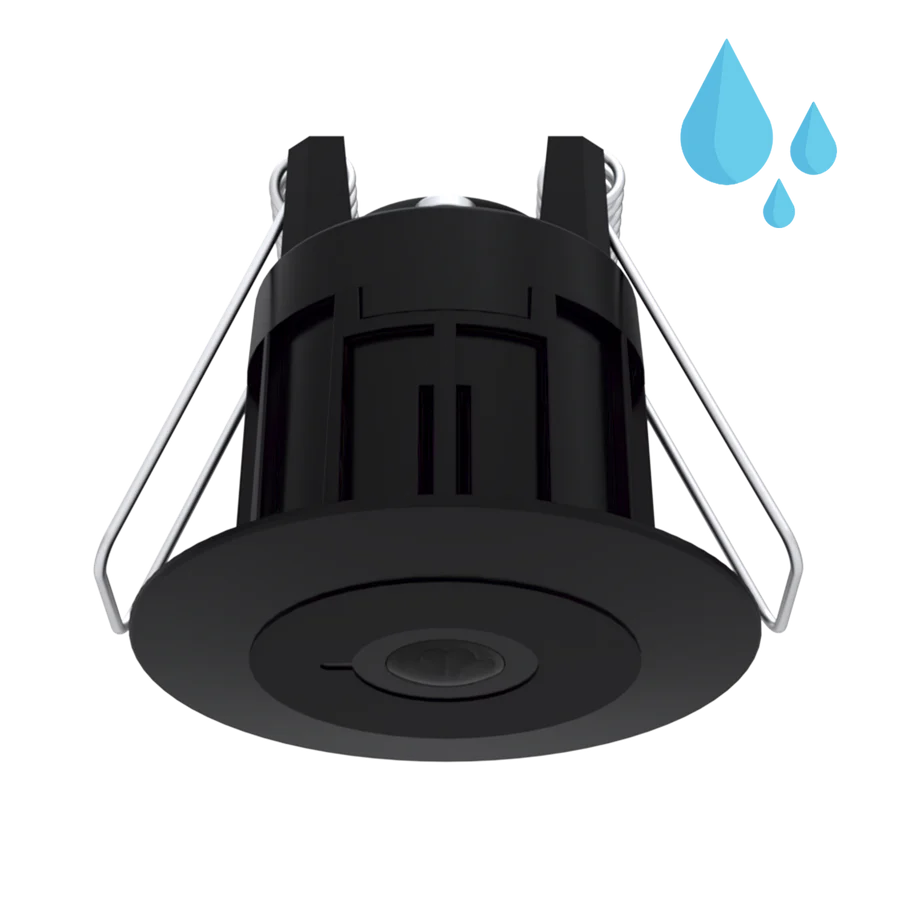

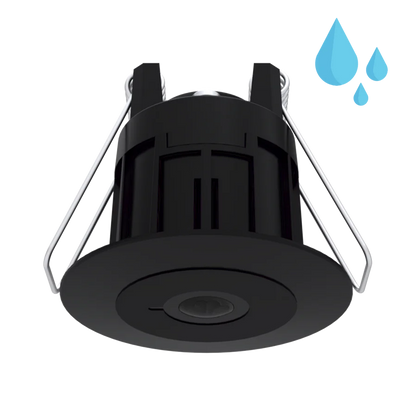

The Faradite Motion Sensor 360 IP67 Volt Free (Dry Contact) in Black is a waterproof, low-profile passive infrared ceiling-mounted motion sensor designed for seamless integration with home, building, and lighting control systems that have volt-free or dry contact inputs. Engineered to deliver reliable motion detection in both indoor and outdoor environments, this sensor is perfect for demanding areas such as bathrooms, gardens, and exposed outdoor spaces, enhanced by its discreet black finish and IP67 rating.

At a height of 9 feet, the sensor provides a 16 feet 4 inches by 16 feet 4 inches observation area, while at 10 feet, it expands to 19 feet 8 inches by 19 feet 8 inches. The device operates optimally when there is a temperature difference of at least 39°F between the target and its surroundings, and a minimum movement speed of 3 feet per second.

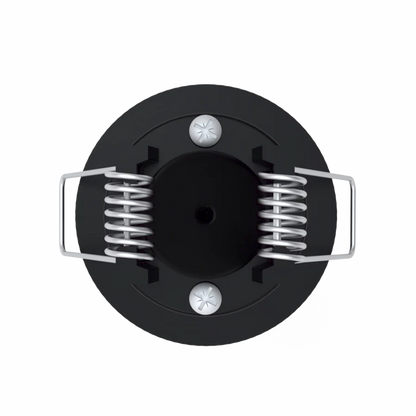

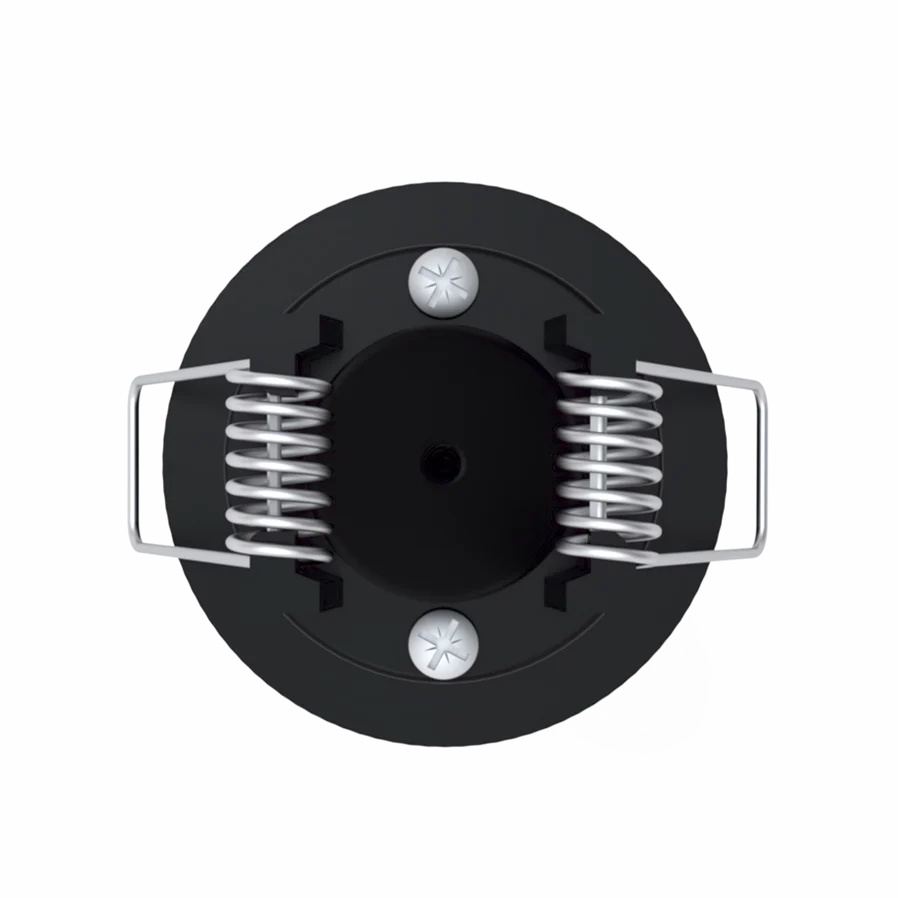

Installation is straightforward, requiring a 1 1/2 inch hole for ceiling mounting. The sensor is designed for flush integration, blending into dark ceilings or exterior finishes for a subtle and modern appearance. Electrical connections are recommended through CAT cable, supporting 20-24 AWG, and should be connected to the control system using the push-fit connector.

Key Specifications:
Dimensions: 16 feet 4 inches detection radius at 9 feet height, 19 feet 8 inches at 10 feet height
Power Supply: 5V-35V DC, 3mA (idle), 4.5 mA (during motion)
Relay Specifications: Solid state relay, max load current 80mA, on resistance 16 Ohms, off-state leakage current 1uA
Default State: Normally open
Temperature Range: 32°F to 122°F
IP Rating: IP67
Mounting Hole: 1 1/2 inches

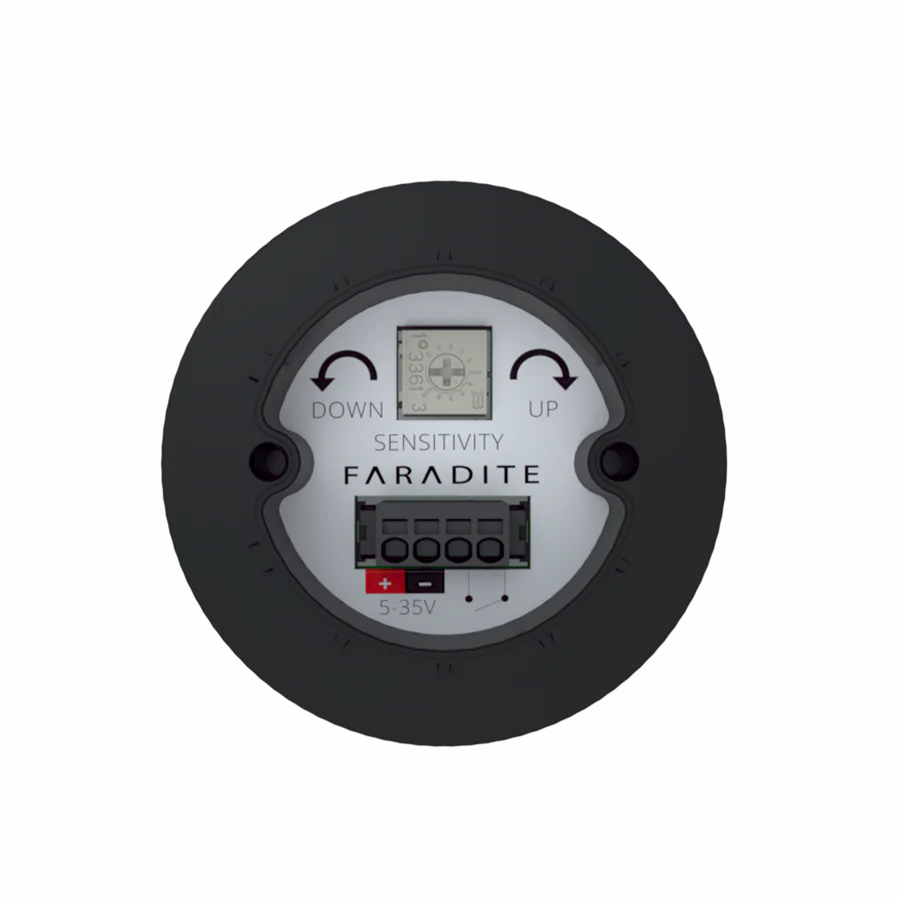

Connection Type: Push-fit connector, AWG 20-24, CAT5/CAT6/Belden 4 Core

Compatibility:
This sensor is compatible with major control systems, including Lutron, Crestron, Loxone, and Control4, among others. For Loxone, it connects via a digital input on MiniServer or Extensions. For Control4, it interfaces with the "SIGNAL" input on a contact closure. Crestron connections are achieved through a digital input, and for Lutron, it interfaces with the "INPUT" of a contact closure input (CCI).
