Faradite Motion Sensor 360 Black Volt Free

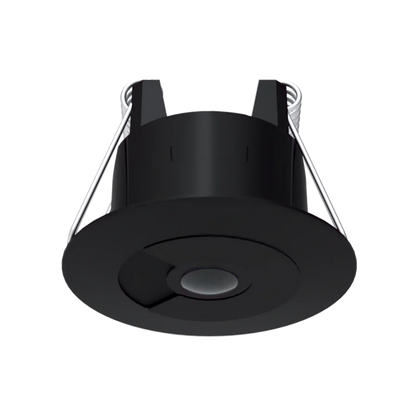

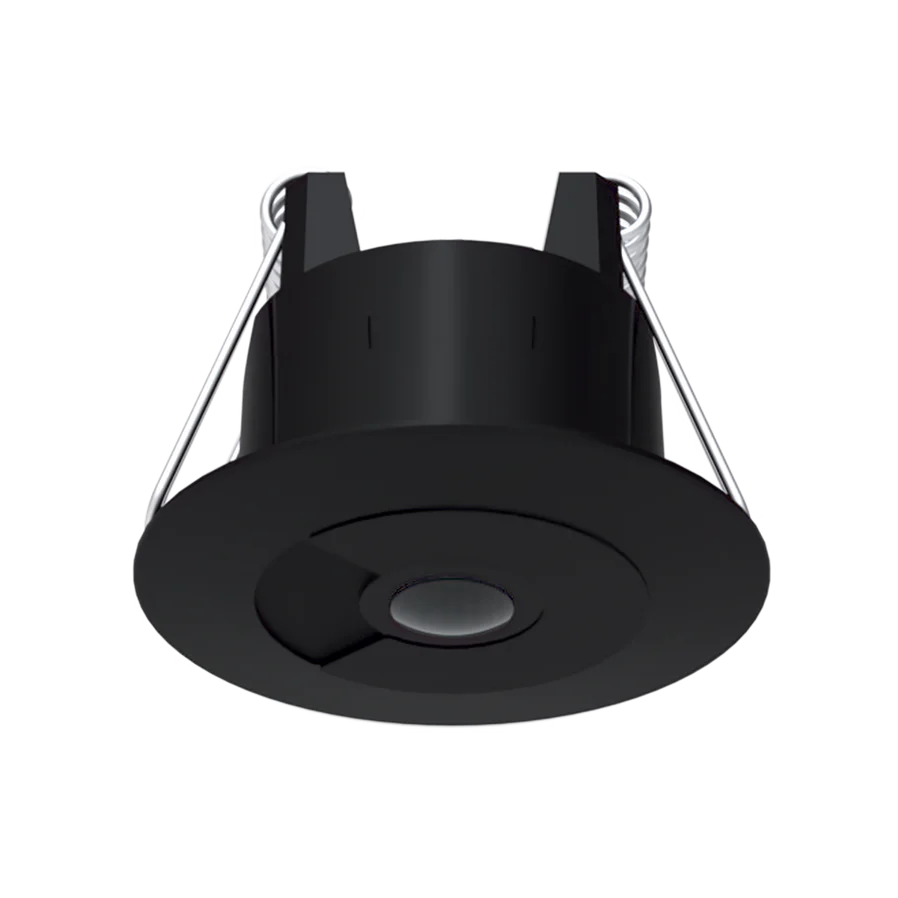

The Faradite Motion Sensor 360 - Volt Free is a low-profile passive infrared ceiling-mounted motion sensor engineered for use with home, building, and lighting control systems that utilize dry contact inputs. It offers seamless integration into various smart home platforms, including Loxone, Control4, and Crestron. With its sleek design, the sensor mounts discreetly in ceilings, providing motion detection with an optimal observation range of 20 feet by 23 feet at 9 feet of height, and approximately 26 feet in diameter at 10 feet of height.

The sensor installs easily with a 1.5-inch hole saw, and its spring clips allow for quick mounting. It is compatible with various smart home systems, including Loxone, Control4, and Crestron, with simple relay connections. For concrete or block wall installations, it requires the “Concrete Box 205X307” (P/N 100-1-403), which is sold separately. Connection to smart systems is straightforward, leveraging CAT cable for secure data transfer.

Key Specifications:
Power Supply: 5V-35V DC, 3mA consumption
Relay Output: Solid-state relay, max load current 80mA, on resistance 16 Ohms, off-state leakage current 1uA
Default State: Normally open
Ambient Temperature: 32°F to 122°F (Indoor Use Only)
IP Rating: IP20
Range: 16 feet 4 inches
Maximum Mounting Height: 9 feet (optimal performance)
Motion Output Timeout: 1 second
Mounting Hole Diameter: 1.5 inches

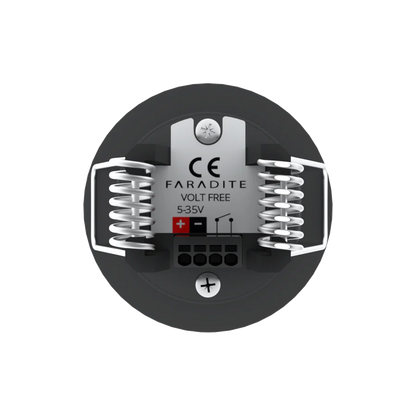

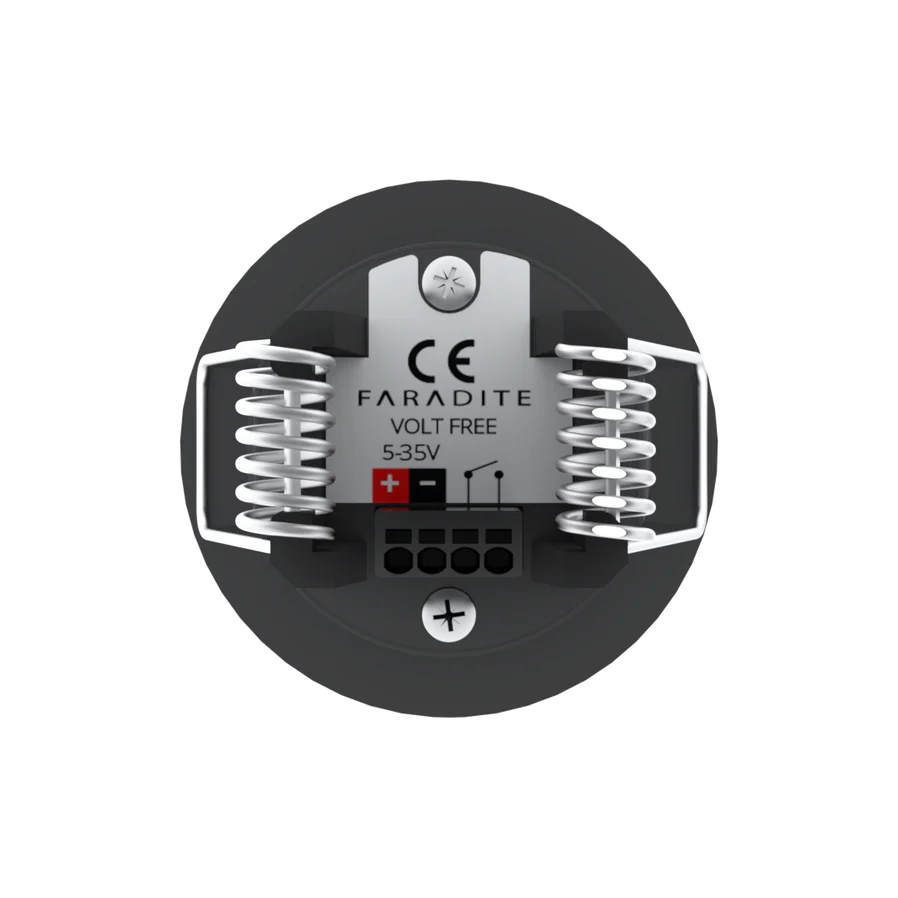

Connector Type: Push-fit, AWG 20-24, CAT5/CAT6/CAT7
Weight: 1.76 ounces (50 grams)
Material: High-impact ABS
Standards: EN 61000-6-1, EN 61000-6-3
