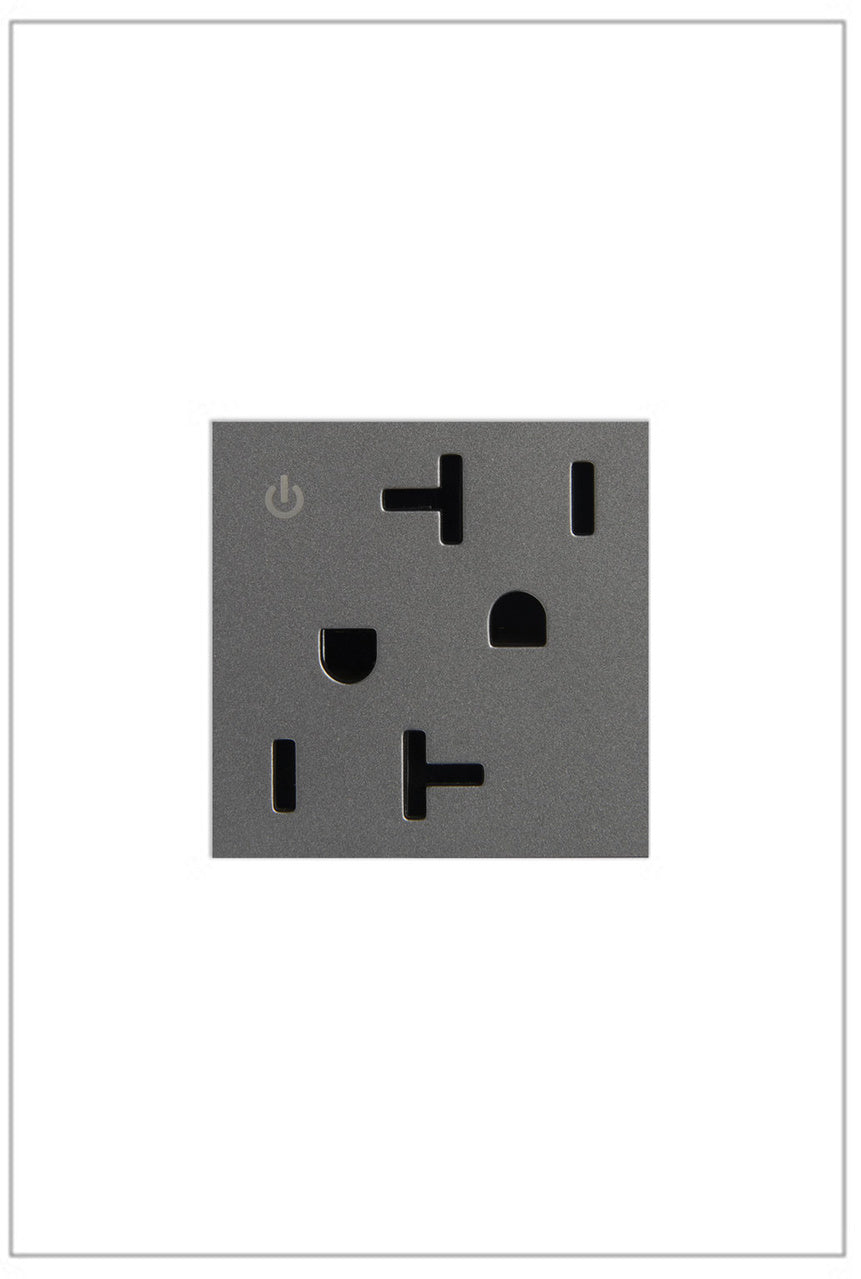

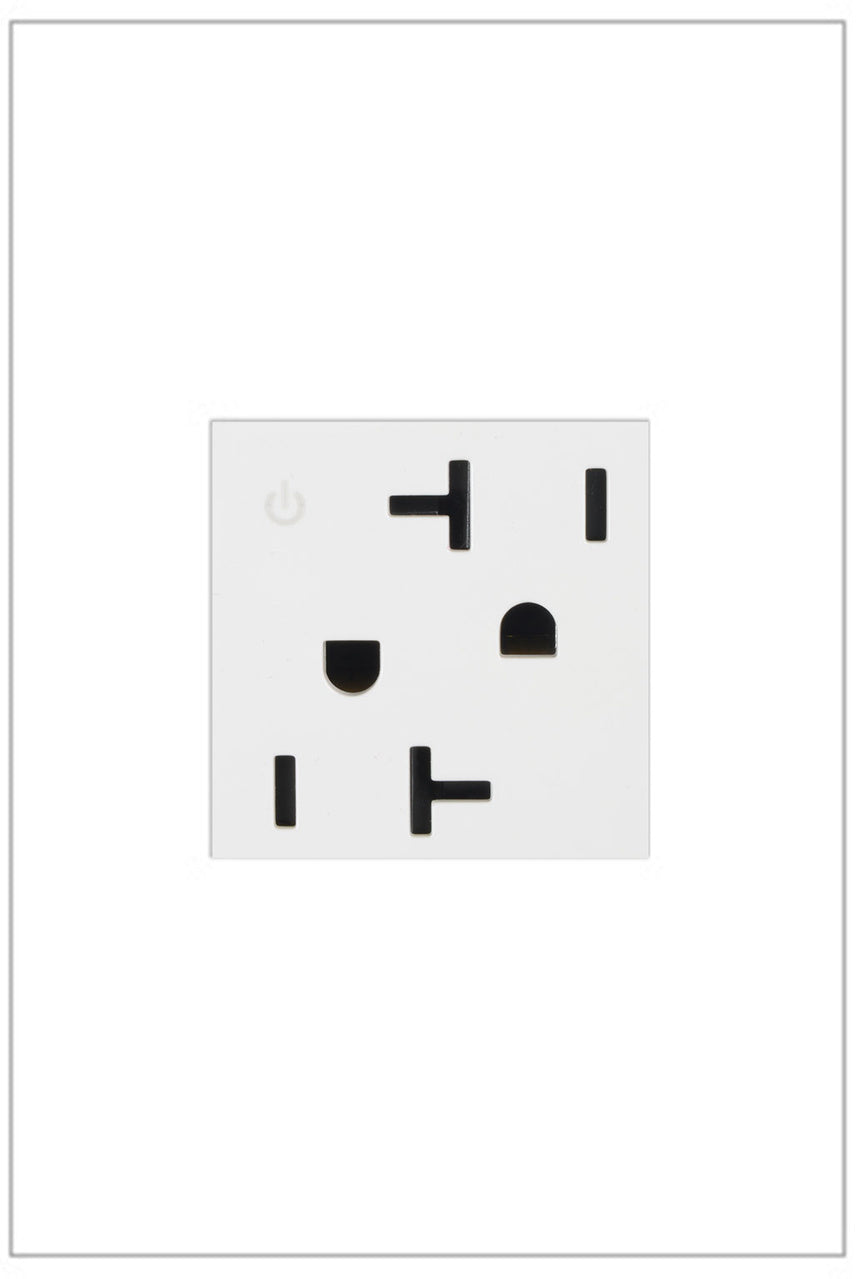

Adorne 20A Tamper‑Resistant Dual‑Controlled Outlet

Modern power, intentionally edited. The adorne® Dual-Controlled Outlet pairs the collection’s crisp, screwless geometry with independent on/off control for each receptacle—so you can cut standby power at the source without compromising the look. Patented tamper-resistant “invisi-shutters” preserve the clean face, while adorne wall plates finish the installation with a gallery-grade edge.

Installs in a standard 1-gang box in about 15 minutes and wires like a conventional receptacle—no special wiring for typical installs. Each plug can be switched off independently for energy management, and the device supports controlled-receptacle requirements referenced by NEC/Title 24/ASHRAE 90.1. Requires an adorne screwless Wall Plate (sold separately). Electrical: 20A, 125V straight-blade, back-wire only with internal pressure plates; 3 wires (hot/neutral/ground); accepts 14–12 AWG copper. Indoor rated; cULus listed; Limited Lifetime Warranty. Device module: approx. 1.77" W × 2.12" H × 1.73" D.

Key Specs

• Type: Dual-controlled, tamper-resistant duplex (two receptacles). Independently cut power to either plug.

• Electrical: 20A, 125V; single phase; double-pole device; internal pressure-plate back-wire; 14–12 AWG.

• Install: Fits existing 1-gang box; typical install ≈15 minutes. Requires adorne screwless Wall Plate (not included).

• Safety: Patented tamper-resistant shutter system with “invisi-shutters.”

• Compliance: Designed for controlled-receptacle energy codes (permanent marking; NEC 2014, CA Title 24, ASHRAE 90.1).

• Listings/Warranty: cULus listed; Limited Lifetime Warranty.
