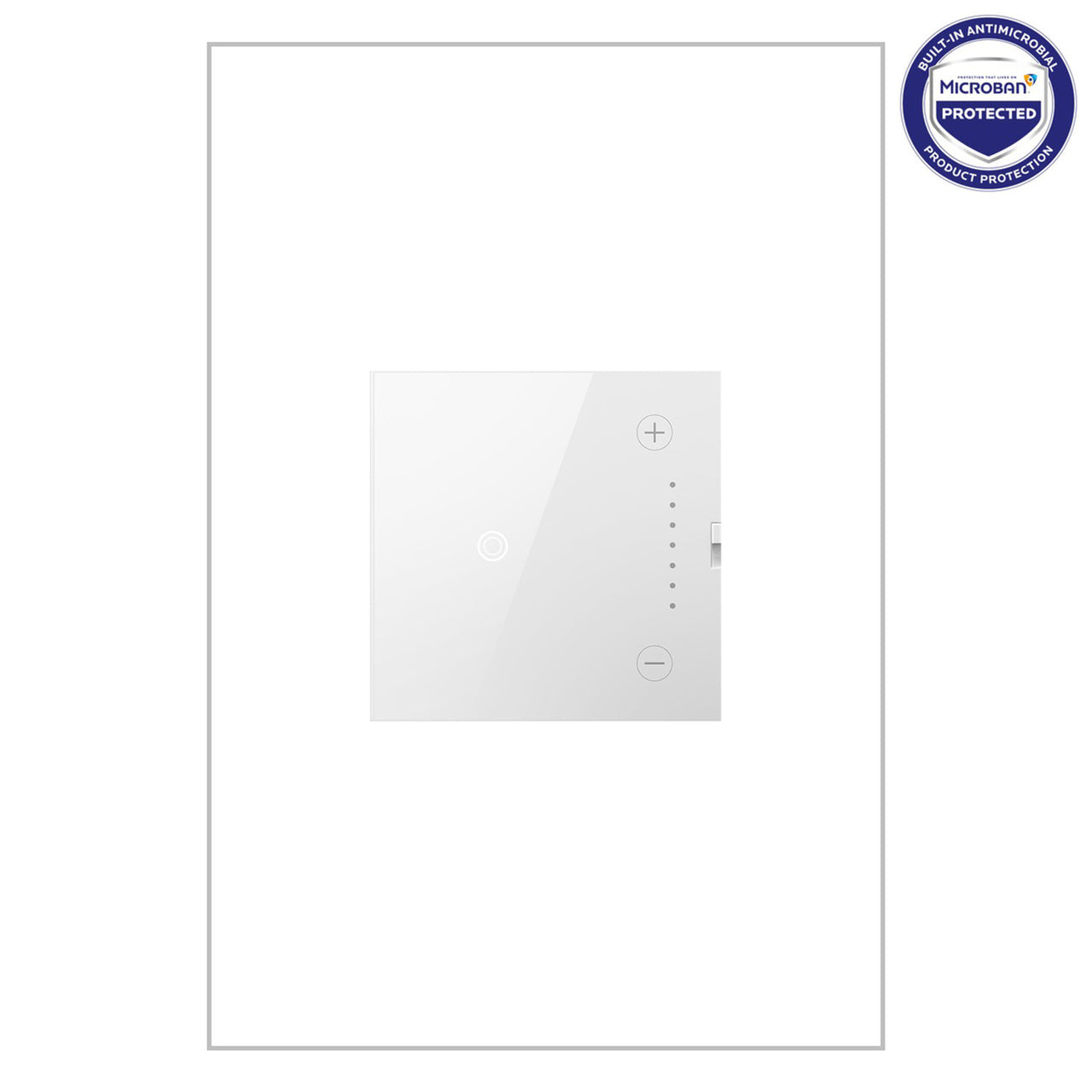

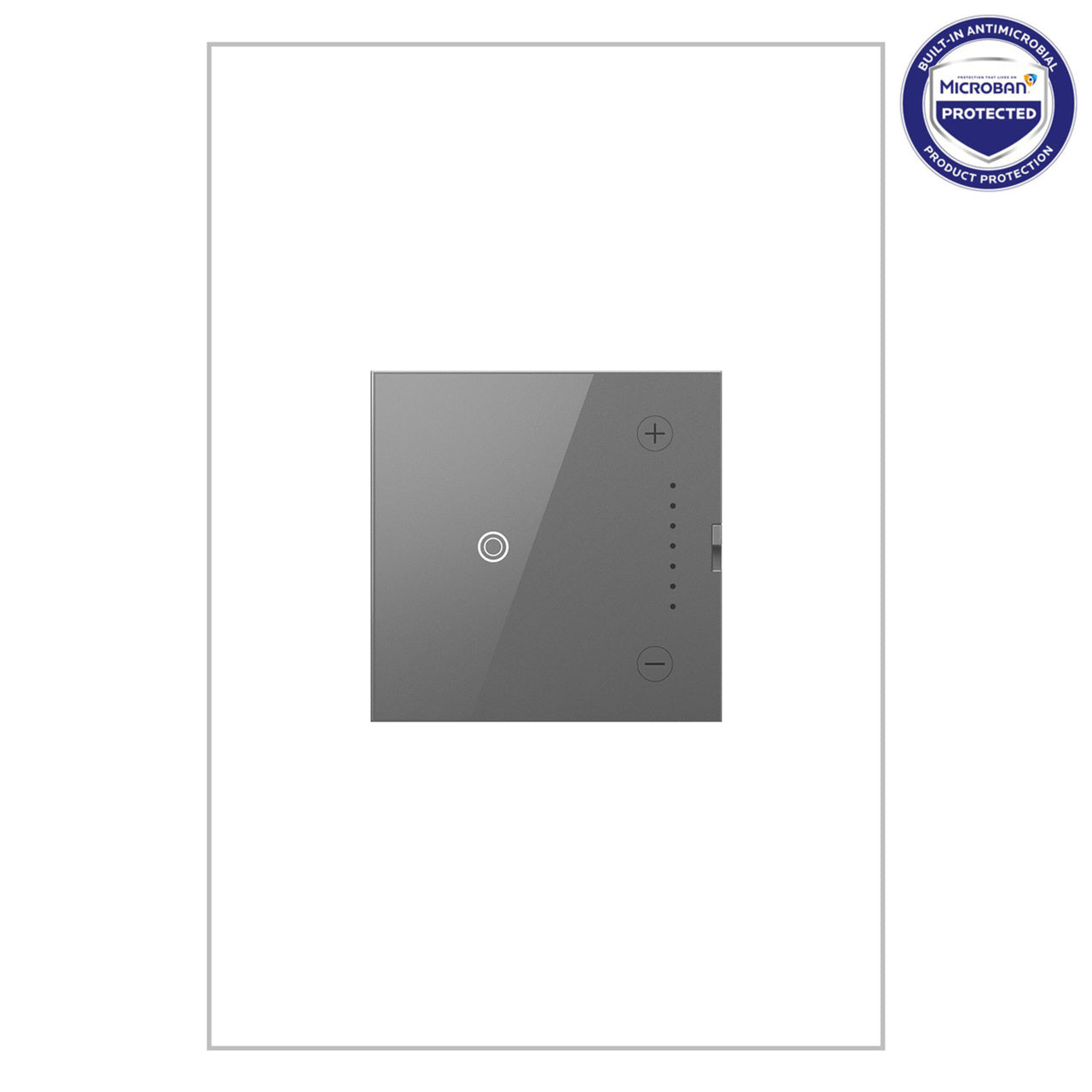

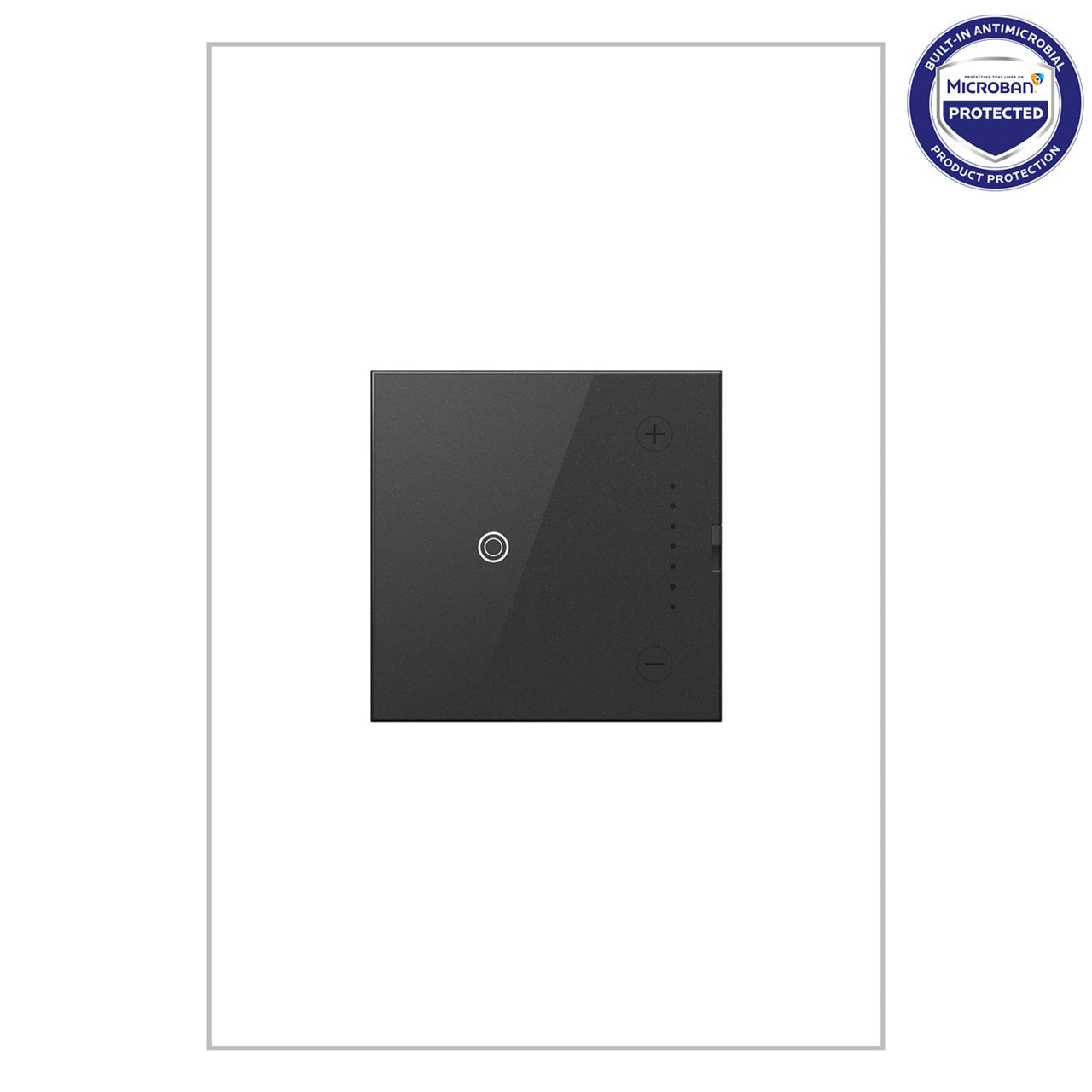

Adorne Touch Tru‑Universal Dimmer

Minimalism you can feel. The adorne® Touch Dimmer replaces toggles and clutter with a single, glass-like touch surface—tap to switch, trace the subtle +/– guides to dial in the perfect level. Behind the quiet face is Tru-Universal technology that self-calibrates to virtually any dimmable load, eliminating flicker and guesswork. Microban® protection helps the surface stay fresher, and the screwless adorne wall plate completes a gallery-grade finish that reads like architecture, not hardware.

Engineered for today’s mixed lamp types, this dimmer handles incandescent/halogen, ELV, MLV, LED/CFL, and electronic fluorescent on typical 120V circuits (0–10V drivers excluded). It installs in a standard 1-gang box with back-wire, pressure-plate terminals and supports single-pole or 3-way control. A neutral is required. Locator/status LEDs sit discreetly behind the face, and multi-gang layouts align seamlessly when you pair Touch controls side-by-side for a consistent look.

Key Specs

• Function: Touch on/off with side +/– dimming; Tru-Universal (self-calibrating)

• Circuits: Single-pole or 3-way

• Electrical: 120VAC, 60Hz; Neutral required

• Load ratings (max): Incandescent/ELV 700W, MLV 500VA, LED/CFL ≈450W (4.5A), Electronic Fluorescent 5.5A

• Minimum load: Incandescent/ELV/MLV 20W/VA; LED/CFL 6W

• Exclusions: Not for 0–10V dimming drivers

• Wiring: Back-wire only; internal pressure plates; 14–12 AWG copper

• Face/finish: White; Microban® antimicrobial product protection

• Dimensions (device body): ~2.66" H × 1.77" W × 1.85" D

• Plate: Requires adorne® screwless wall plate (sold separately)

• Listings/Warranty: cULus; Limited Lifetime Warranty

Spec Sheet

Installation Guide
