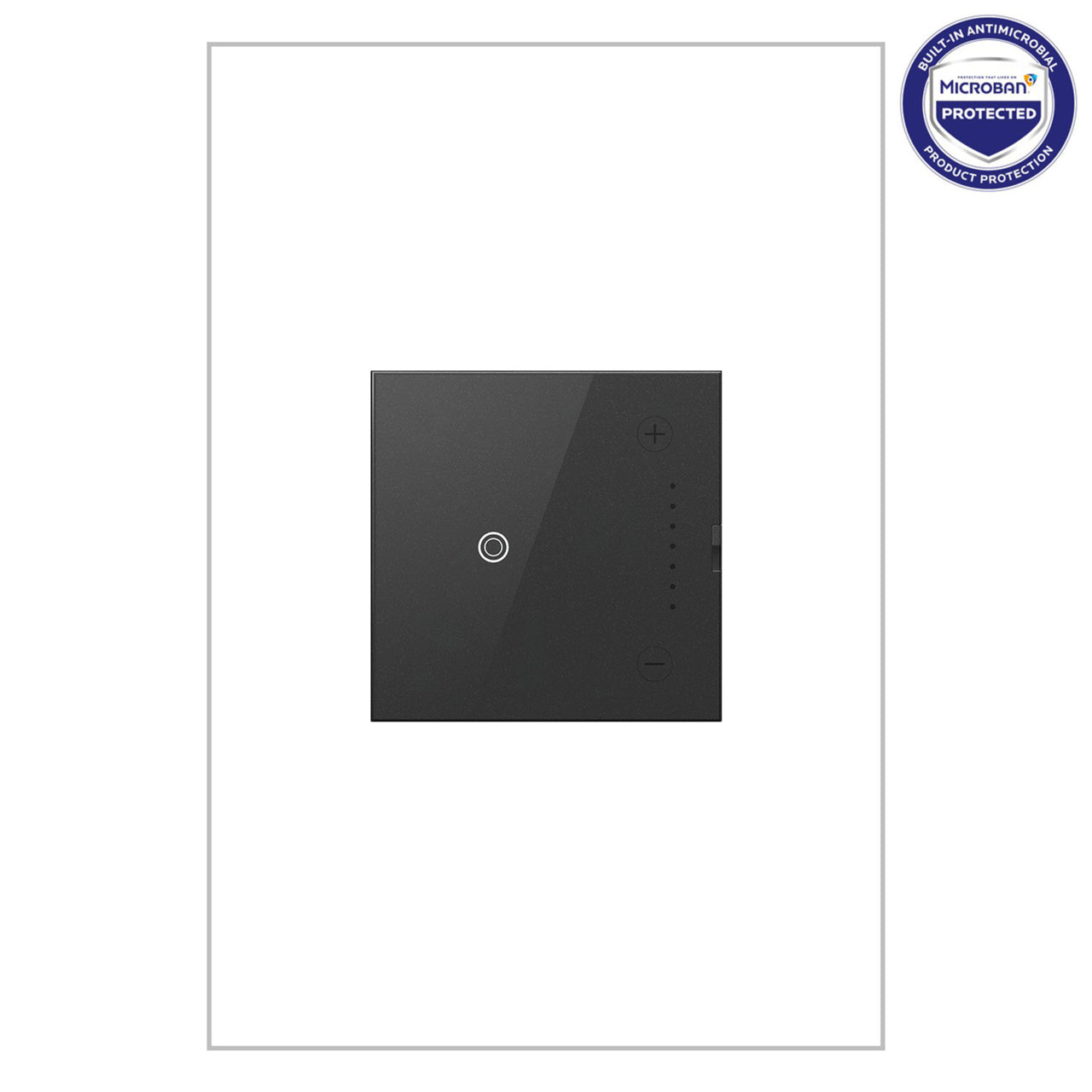

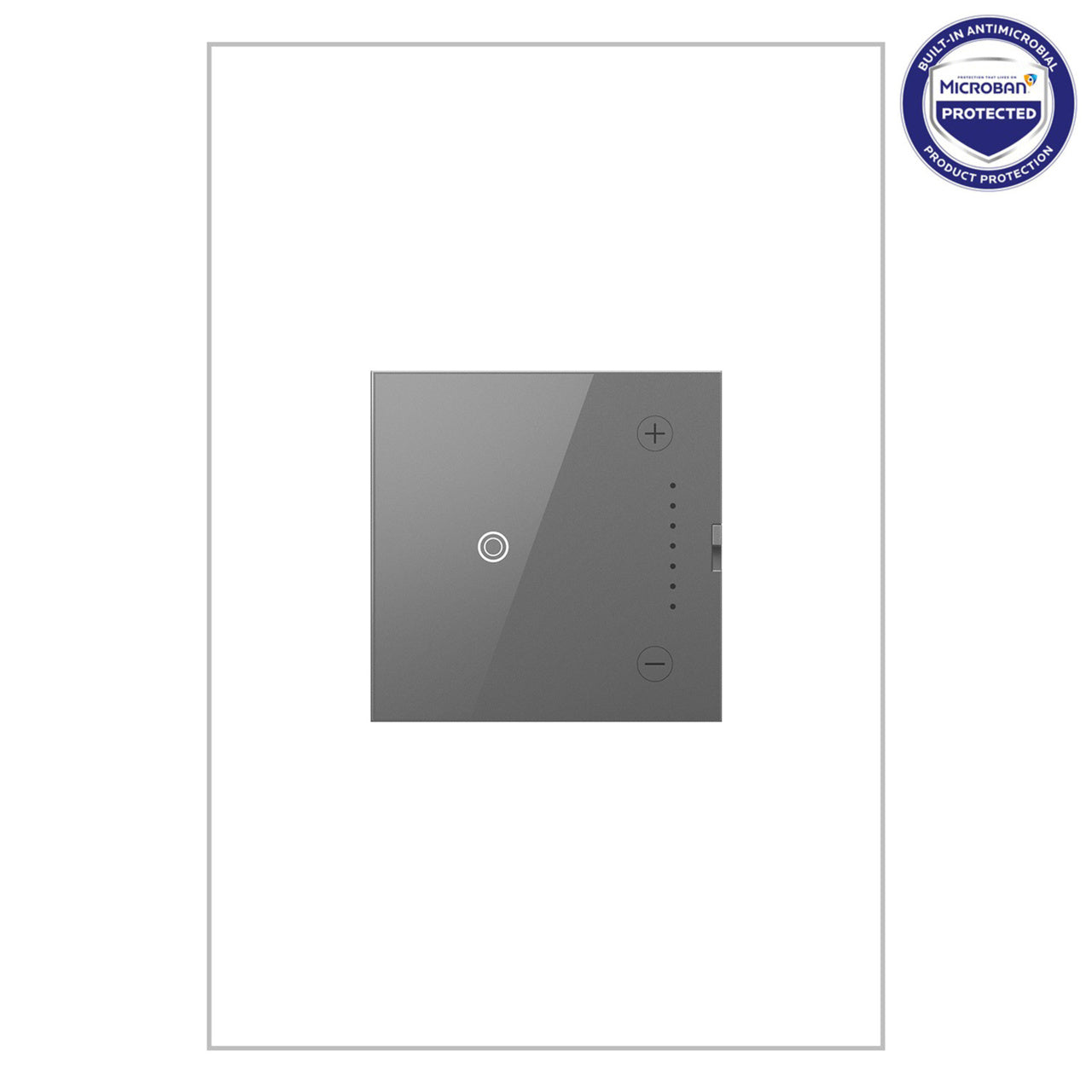

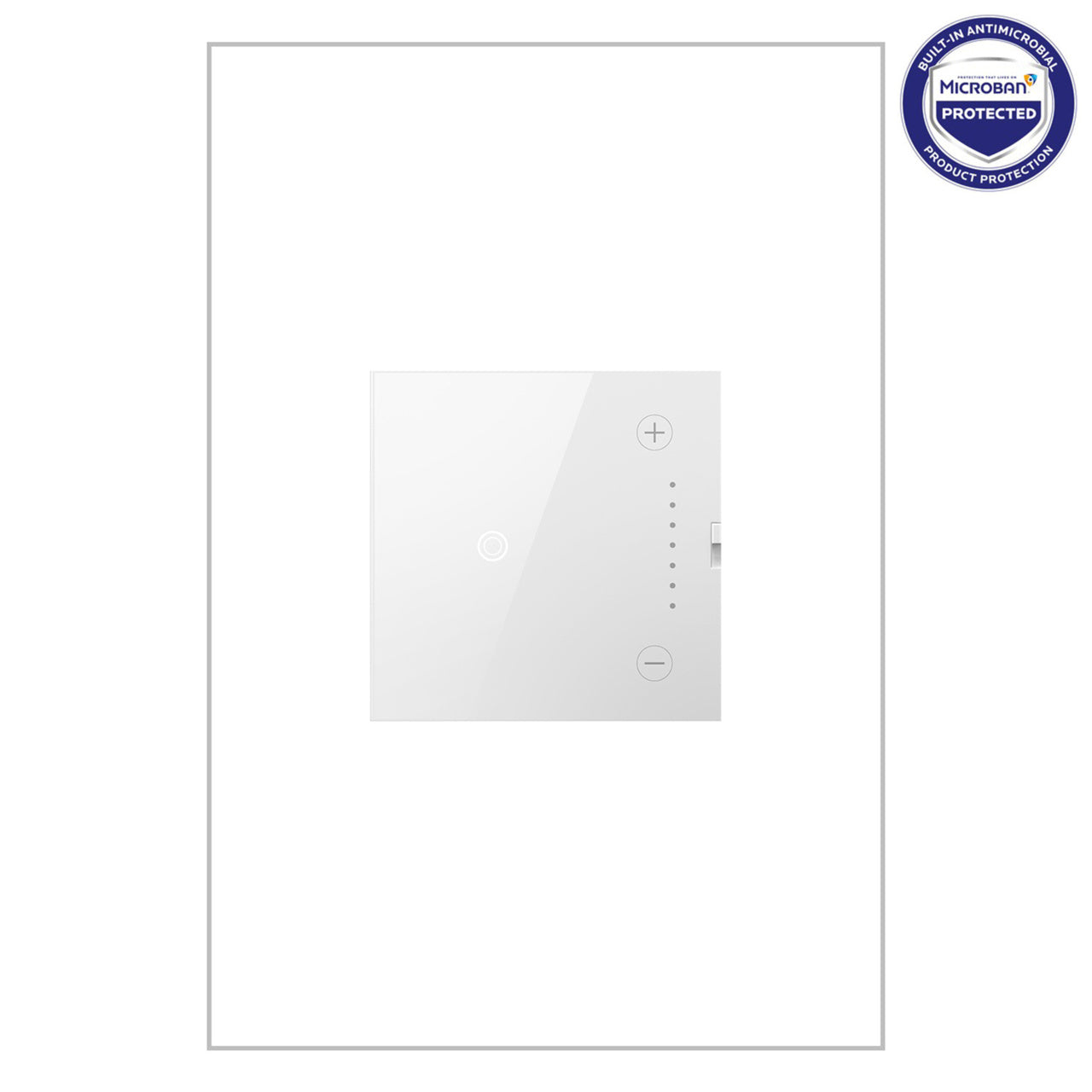

Adorne Touch 0–10V Dimmer

The adorne® 0–10V Touch Dimmer replaces toggles with a single, glass-like surface—tap the center to switch, glide on the +/– guides to set the level. It’s purpose-built for fixtures using 0–10V drivers, bringing commercial-grade smoothness to design-led homes and hospitality spaces. Microban® antimicrobial protection keeps the face fresher, and the screwless adorne wall plate completes a gallery-grade finish that reads like architecture, not hardware.

Engineered for dedicated 0–10V dimming. The line/load wires land on screw terminals while a low-voltage pigtail pair connects to the driver’s 0–10V leads. Supports single-pole or 3-way control (use one dimmer with a standard 3-way switch—multi-dimmer 0–10V isn’t supported). Operates on 120/277 VAC for residential or light commercial runs, requires a neutral, and includes low-end trim plus a discreet locator light for night guidance. Finish the installation with an adorne® screwless wall plate to keep lines seamless across the room.

Key Specs (concise)

• Dimming type: 0–10V (LED & fluorescent drivers)

• Circuits: Single-pole or 3-way (one dimmer per circuit)

• Electrical: 120/277 VAC, 60 Hz; neutral required

• Load ratings: 120V LED/fluorescent up to 10A · 277V LED/fluorescent up to 5A

• Wiring: Line/load screw terminals; 0–10V flying leads; #14–#10 AWG

• Features: Microban® protection · Locator LED · Low-end trim

• Form factor: adorne® module; approx. 1.77" W × 1.77" H × 1.62" D (device body)

• Plate: Requires adorne® screwless wall plate (sold separately)

• Listings/Warranty: cULus; Limited Lifetime Warranty
