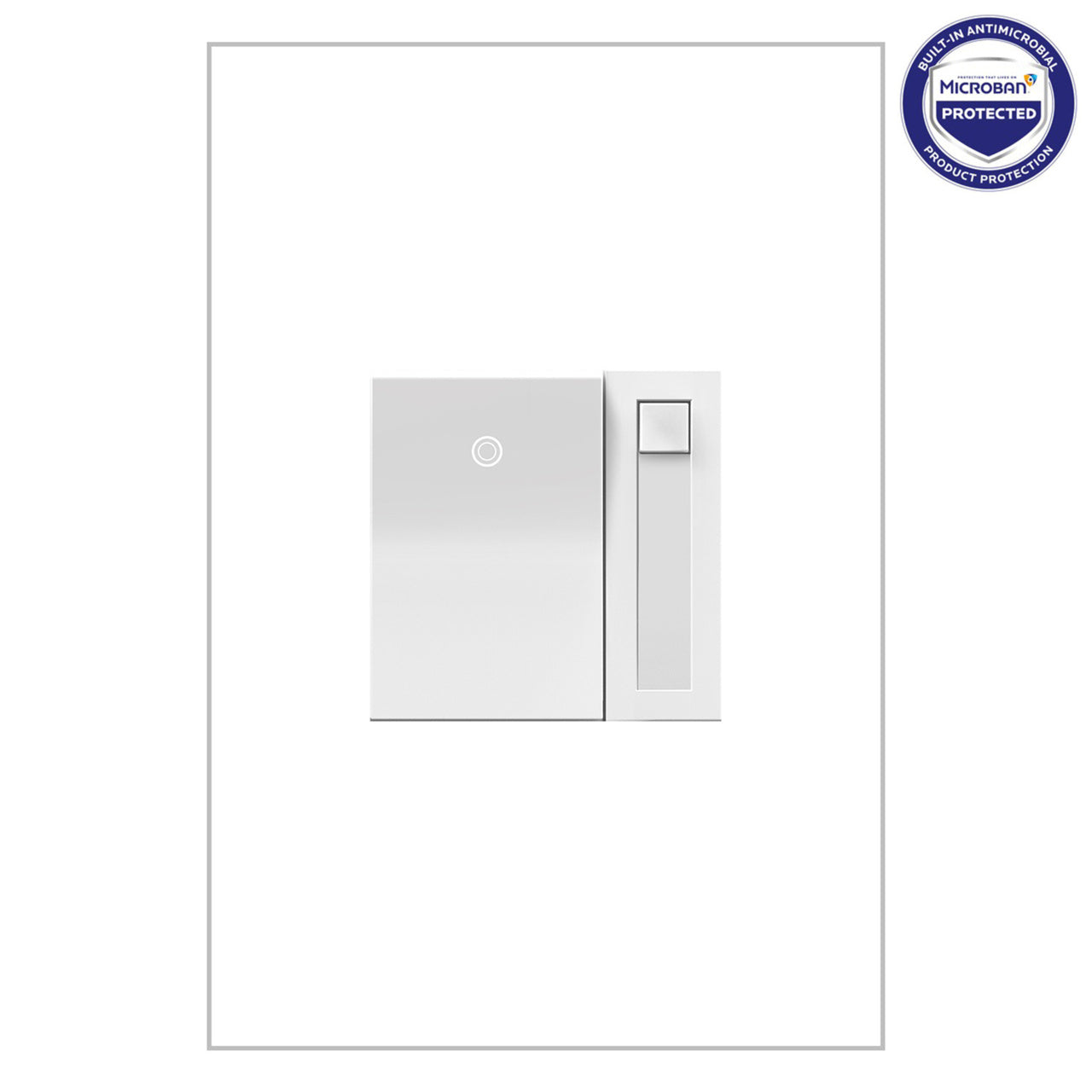

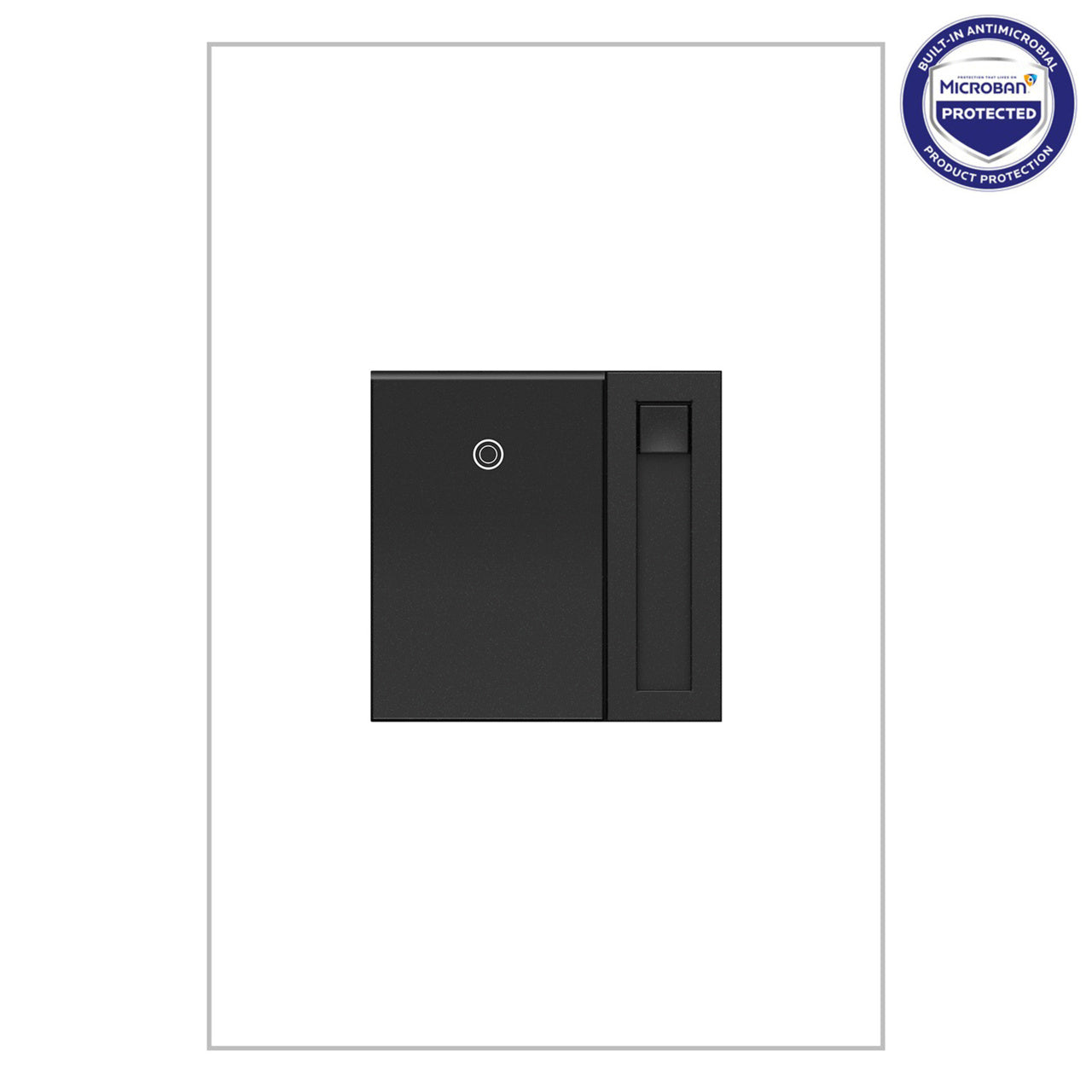

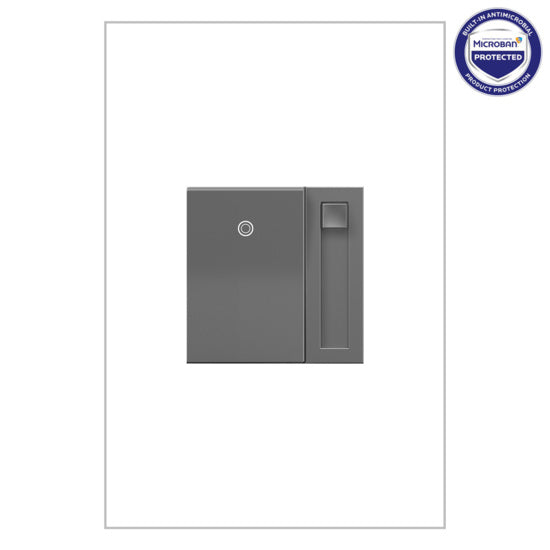

Adorne Paddle 0–10V Dimmer

A precision dimmer, elevated to architecture. The adorne 0–10V Paddle Dimmer brings a clean, screwless silhouette to the wall while delivering commercial-grade 0–10V control for dedicated LED drivers. Rock to switch, slide to set the level—quiet, intentional, and consistent. Microban protection helps the surface stay fresher, and the square geometry aligns with adorne wall plates for a gallery-grade finish.

Purpose-built for fixtures using 0–10V drivers. Line/load lands on screw terminals while a low-voltage lead pair connects to the driver’s 0–10V inputs. Works single-pole or 3-way (use one dimmer with a standard 3-way switch). Operates on 120/277 VAC for residential or light commercial runs and does not require a neutral. Add any adorne screwless wall plate (sold separately) to complete the look.

Key specs

• Dimming type: 0–10V (LED and fluorescent drivers)

• Circuits: single-pole or 3-way (one dimmer per circuit)

• Electrical: 120/277 VAC, 60 Hz; neutral not required

• Load ratings: 120V up to 10 A LED/fluorescent; 277V up to 5 A LED/fluorescent

• Wiring: line/load screw terminals; 0–10V flying leads; #14–#10 AWG

• Features: Microban antimicrobial protection; locator light; low-end trim

• Form factor: adorne module; approx. 1.77" W × 1.77" H × 1.62" D

• Plates: requires adorne screwless wall plate (not included)

• Listings/Warranty: cULus; Limited Lifetime Warranty

• Not for: motor loads or non-0–10V dimming
