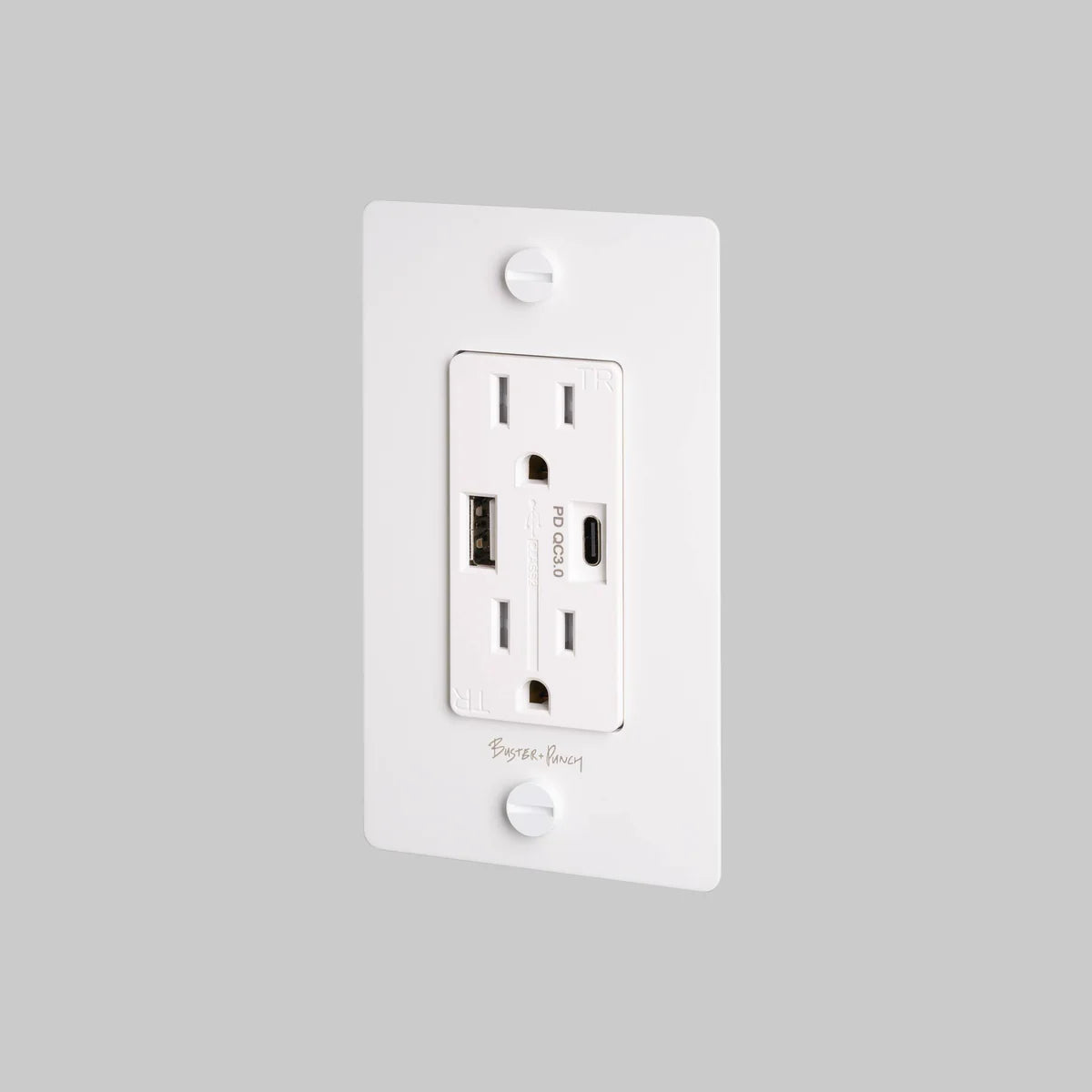

Buster + Punch 1 Gang Combination Duplex Outlet + USB‑A/C

The Buster + Punch Combination Duplex Outlet with USB-A + USB-C composes a slim, flush metal plate with a tamper-resistant 15-amp receptacle and integrated charging, turning a necessary power point into a quiet, architectural detail. A refined shadow line and solid-metal screw set create a precise, gallery-grade finish that aligns with modern, minimalist interiors. Available with or without the Buster + Punch logo and in five coordinated finishes, it pairs cleanly with matching switches and dimmers to carry a composed material language across the home.

This complete 1-gang assembly mounts to a standard flush electrical box and includes the faceplate, the duplex + USB module, and matching coin or Torx screws for a tailored presentation. The receptacle is rated 15 A at 125 V AC, 60 Hz (NEMA 5-15R) and is tamper-resistant for residential compliance. Integrated Class 2 charging provides a dedicated USB-A port at 5 VDC/2.4 A and a USB-C port that supports Power Delivery / QC3.0 for fast-charge compatibility. Select finish to align with adjacent hardware, then choose with-logo or without-logo; both variants share identical dimensions, electrical ratings, and finishes. Plate height is approximately 4.75 inches with a width near 2.75 inches, presenting a subtle ~1/8-inch shadow gap when installed. For multi-gang runs, coordinate with separate 2–4 gang plates within the same Buster + Punch modular system. Intended for interior, dry locations; professional installation is recommended to ensure correct wiring and precise alignment.

• Electrical: 15 A, 125 V AC, 60 Hz; NEMA 5-15R; tamper-resistant

• USB charging: Class 2; USB-A 5 VDC / 2.4 A; USB-C with PD/QC3.0 support

• Dimensions (plate): approx. 2.75" W × 4.75" H; ~0.125" shadow gap when installed

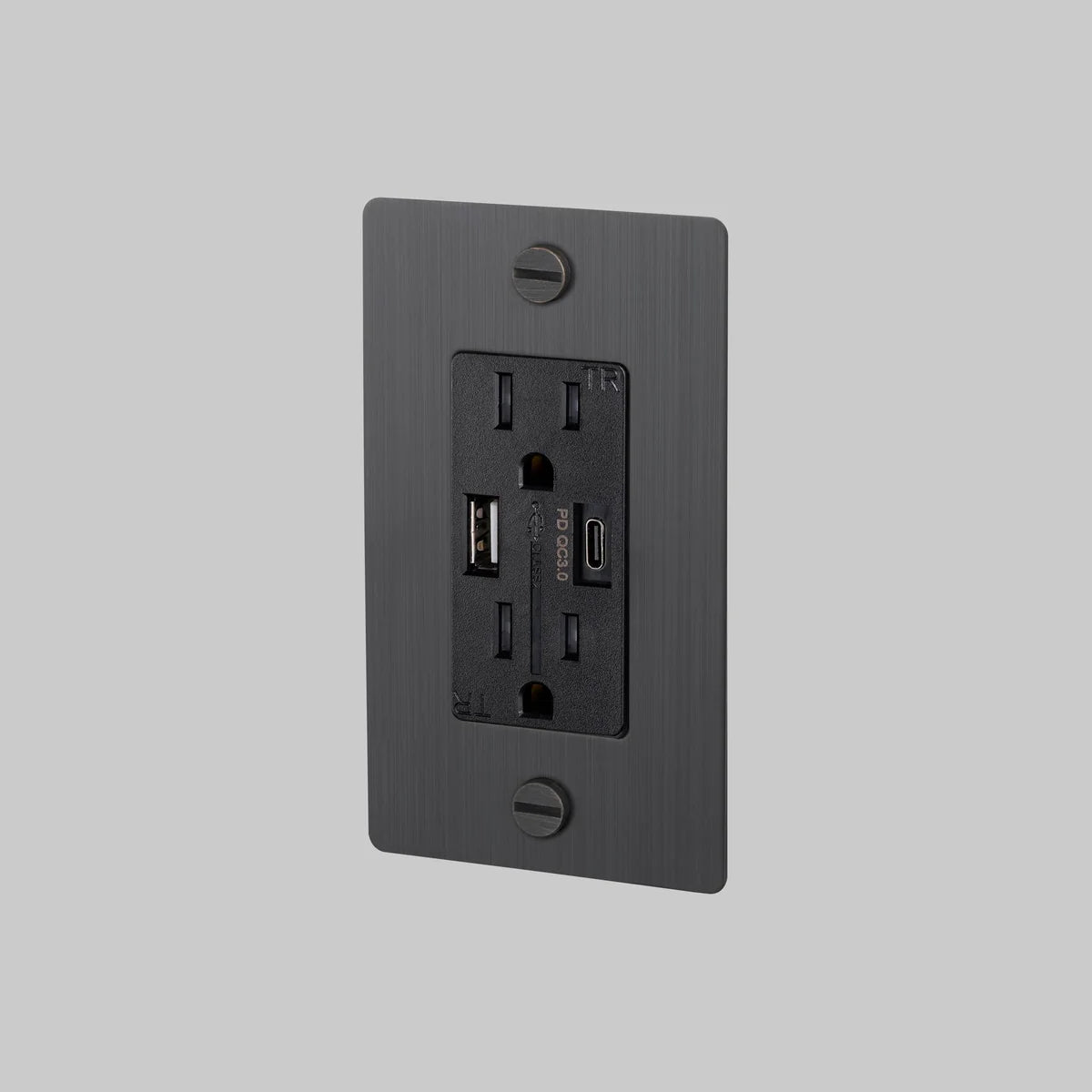

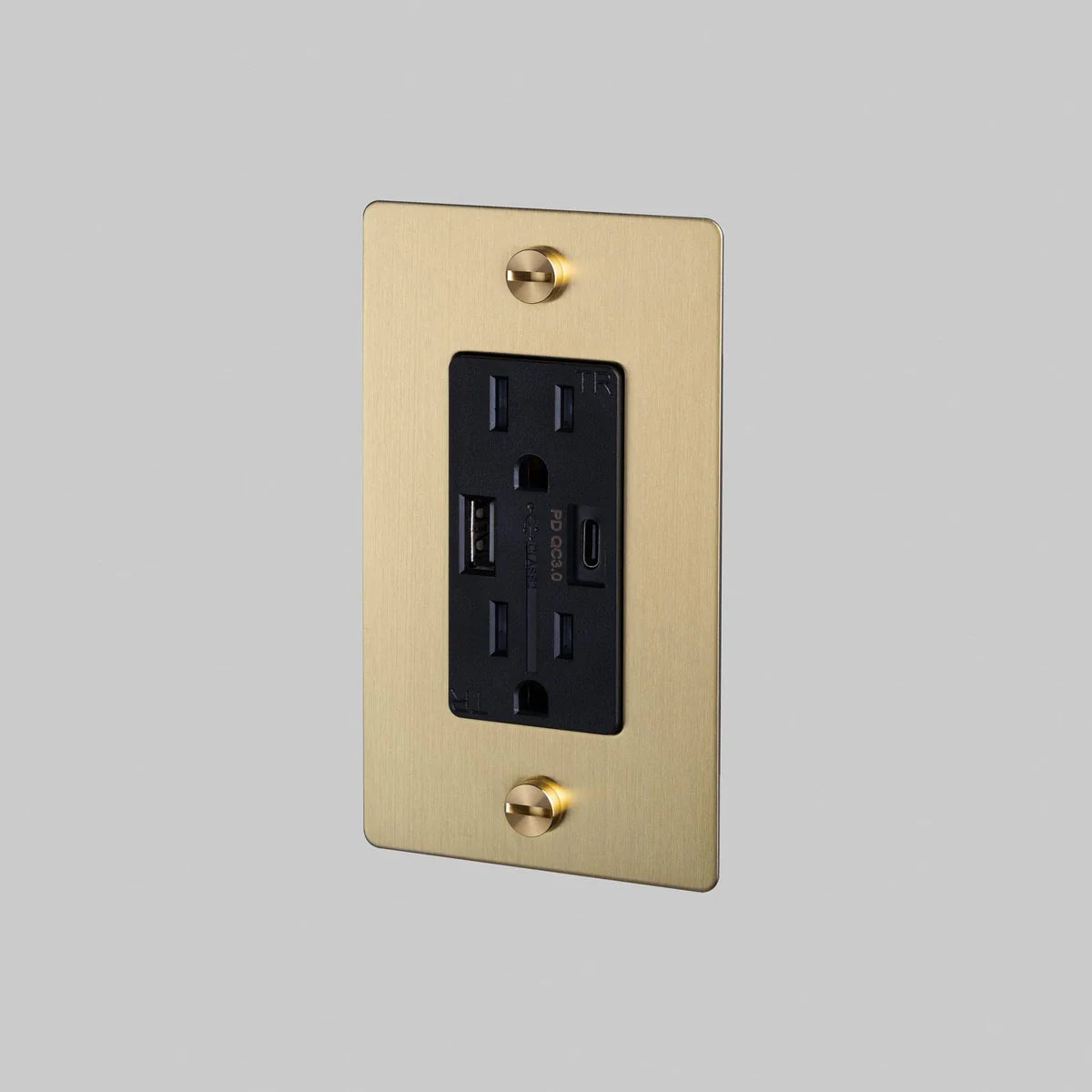

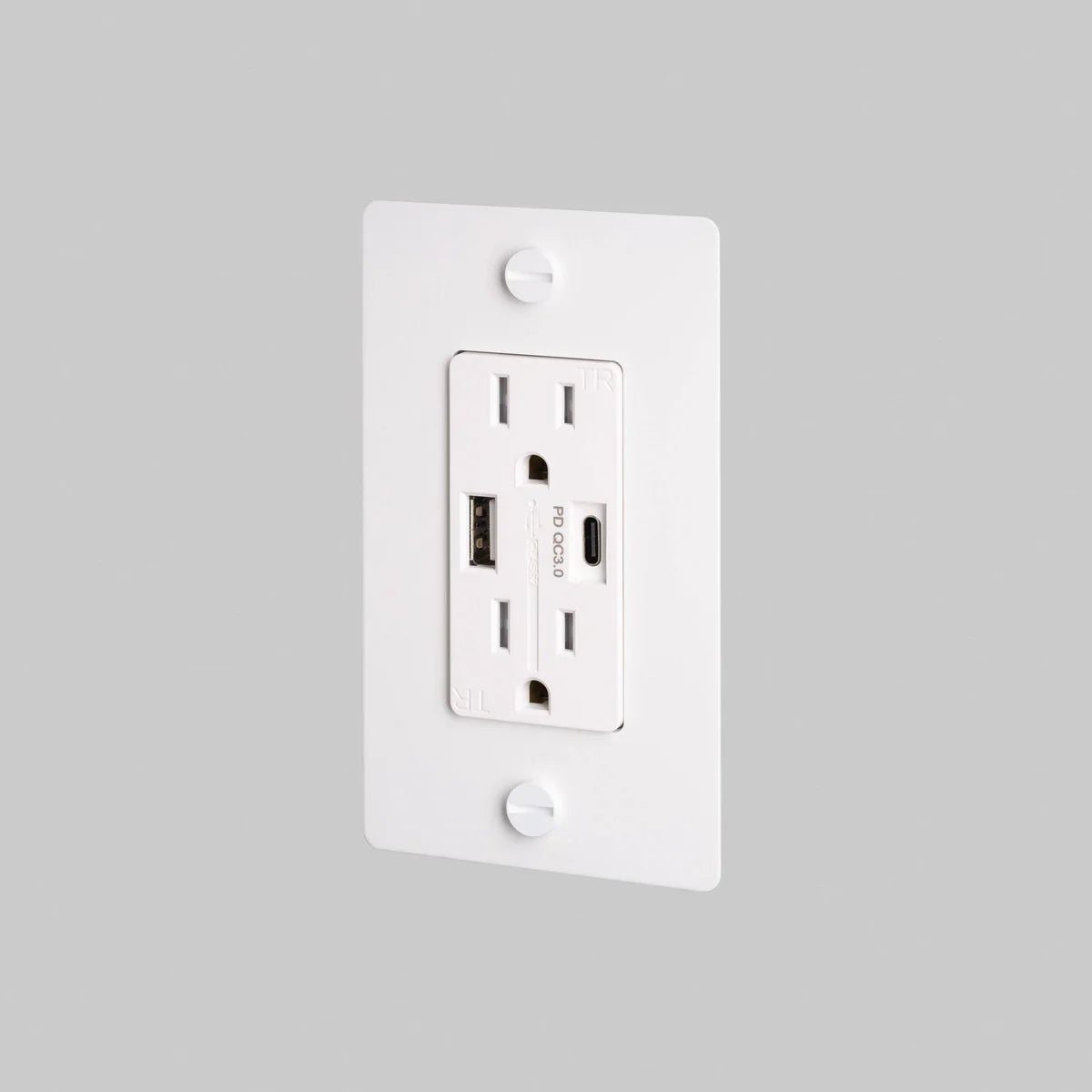

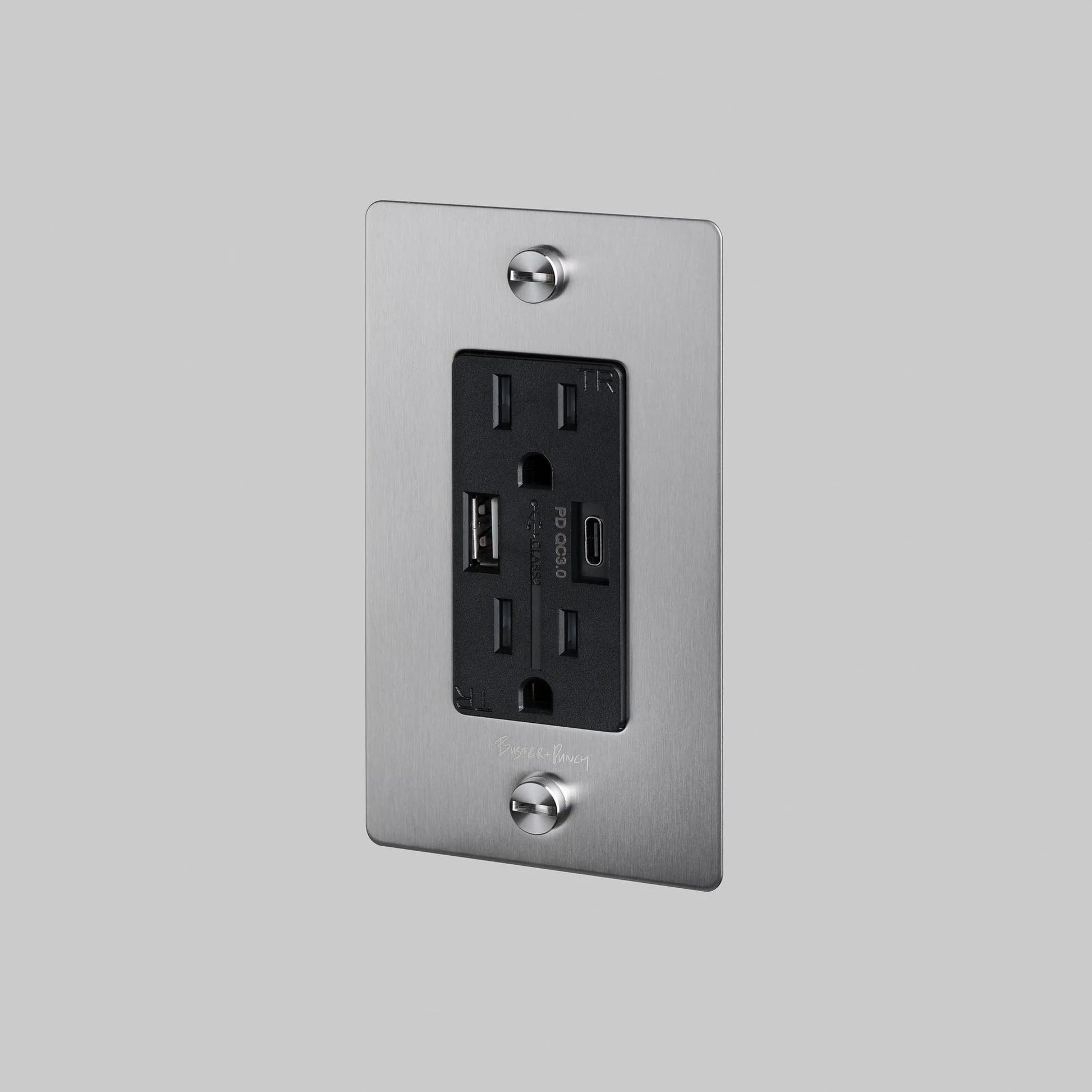

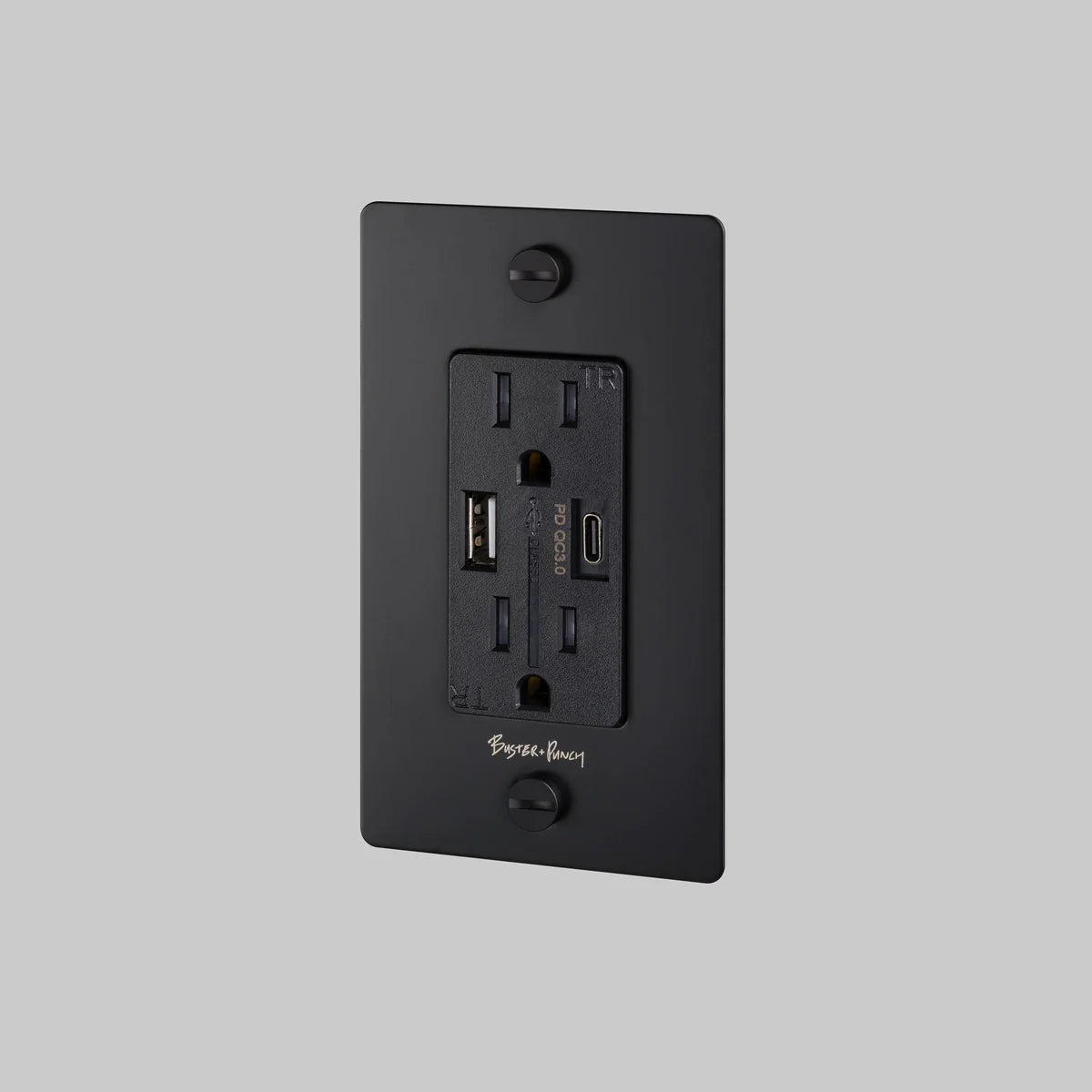

• Finishes: Black, Brass, Smoked Bronze, Steel, White

• Variants: with logo and without logo; identical specs/finishes across both

• Construction: metal faceplate; solid-metal screw set (coin or Torx); modular outlet/charger body

• Compatibility: part of the Buster + Punch modular electricity range; coordinates with matching switches, dimmers, and wall plates

• Location & listing: interior, dry locations
